Community LVH-900 Beamforming Venue Horn from Biamp

COMMUNITY

LVH-900


The Industry's First

Beamforming Venue Horn

EXTRAORDINARY SOUND IN LARGE VENUES

stadium_icon

STADIUMS

indoor_icon

INDOOR
ARENAS

auditorium_icon

AUDITORIUMS

worship_icon

HOUSES
OF WORSHIP

OUTSTANDING PERFORMANCE



Biamp’s Community LVH-900 Beamforming Venue Horn™ provides the highest output, widest bandwidth, and most consistent coverage of any large format point source loudspeaker on the market. Combined with Community Amplified Loudspeaker Controllers, LVH-900 precisely tailors the directivity of each loudspeaker, or array of loudspeakers, to meet the sound requirements in any application.

  • High output (137 dB @ 1m, continuous, per loudspeaker)
  • Smooth, full-range response (60 Hz - 18 kHz)

EXCEPTIONAL FLEXIBILITY

From a single-cabinet point source system to large scale arrays, LVH-900 offers unmatched configuration flexibility with software configurable coverage patterns. System designers have the flexibility to modify coverage patterns without replacing the physical loudspeaker and can easily shape the output of the system to the audience area.

Two horn patterns offer fixed horizontal coverage of 60° or 90°

LVH-900 60-90-SKUs-10-06-20


VARIABLE VERTICAL DISPERSION

12+ Horn Patterns from 4 Base Models

TWO ACTIVE STANDARD MODELS

LVH-906/AS and LVH-909/AS

  • A single Active Standard cabinet can provide vertical coverage of 60°, 40° or 20°
  • Up to 137 dB continuous max SPL (143 dB Peak)

TWO ACTIVE PLUS MODELS

2 x LVH-906/AP and 2 x LVH-909/AP

  • Dual-cabinet arrays of Active Plus models offer vertical coverage of 100°, 80° or 20°
  • Pattern control to below 200 Hz
  • Up to 140 dB continuous max SPL (146 dB Peak)
  • Active Plus models are sold individually, but designed to be deployed as 2-cabinet arrays

POWERFUL 3-WAY DESIGN

LVH-900 Driver



  • 4 x 1.5” HF Drivers
    Compact neodymium motors, keytone polymer radiator design

  • 3 x 2” MF Compression Drivers
    Proven Community M200 Drivers, keytone polymer diaphragm

  • 4 x 12” LF Drivers
    3” voice coils, inherently weather-resistant cone in cast aluminum chassis

INDOOR AND OUTDOOR MODELS

LVH-900 Indoor Outdoor Models

INDOOR MODELS are available in standard black or white finishes, with matching optional rigging hardware and splay brackets.

OUTDOOR MODELS feature extremely durable, weather-resistant PolyGlas™ enclosures in standard grey, black or white finishes.

DESIGN SYSTEMS QUICKLY IN EASE® FOCUS

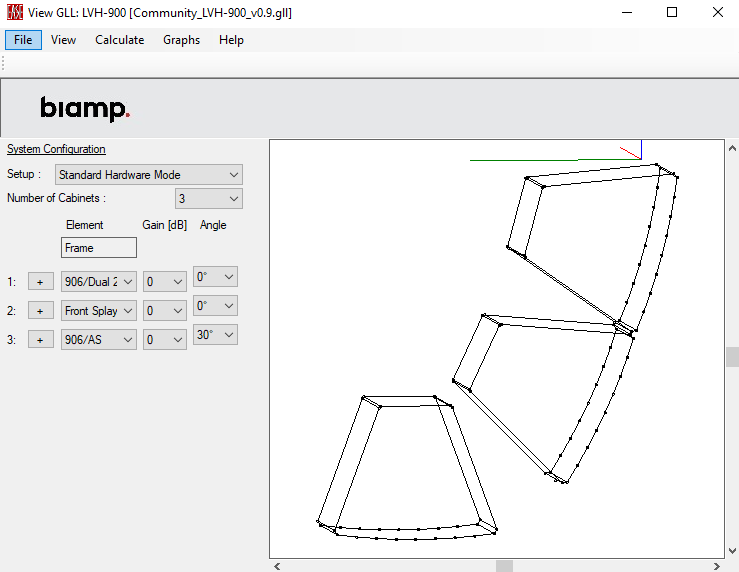

Community LVH-900 AS/AP - EASE Focus GLL



  • All coverage patterns included within a single GLL file

  • Similar workflow as designing with a line array

  • Quickly evaluate all available LVH-900 coverage patterns

  • Mix and match coverage patterns

  • Quickly choose cabinet splay angles

GO DIRECTLY FROM GLL
TO AMPLIFIER AND DSP SETTINGS

ALC-1604D 4 Channels x 1600W + DSP and Dante

ALCs are optimized to match the needs of Community loudspeakers from Biamp

ALC-1604D Rear Panel 4 channels x 1600W + DSP and Dante®
ALC-404D Amplifier - back image

ALC-404D Rear Panel 4 channels x 400W + DSP and Dante®
ALC-1604D Amplifier - back image

Beamforming loudspeaker library presets available within the Community Amplified Loudspeaker Controllers (ALCs)

Biamp recommends 2 ALC amplifiers for each LVH-900/AS.

  • Use one ALC-404D to power the mid and high frequency drivers and one ALC-1604D bridged for the LF section

Biamp recommends 4 ALC amplifiers for each pair of LVH-900/AP.

  • Use two ALC-404D to power the mid and high frequency drivers and two ALC-1604D bridged for the powering LF sections

All FIR beamforming presets are available in the ALC loudspeaker library.
