SYSTEM DESIGN GUIDE
Corporate Campus
As the demand on audio systems increases, it's important to design a system that's flexible, scalable, and has the horsepower to make your audio sound great. A Tesira SERVER-IO solution is easily configurable, and allows you to leverage VoIP, while networking multiple rooms together over AVB/TSN. With Beamtracking microphones, conference participants can move around the room naturally without worrying whether the far end can still hear them clearly. In this scenario, the Tesira SERVER-IO supports 10 conference rooms in a corporate campus with VoIP and AVB/TSN networking.

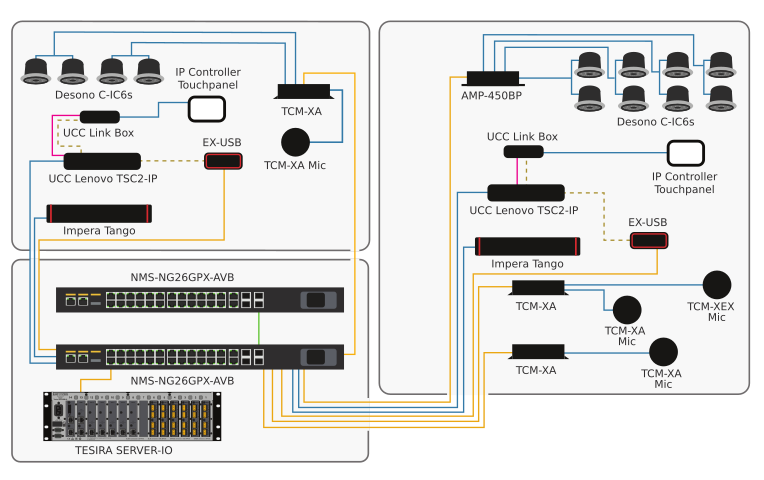

WIRING DIAGRAM

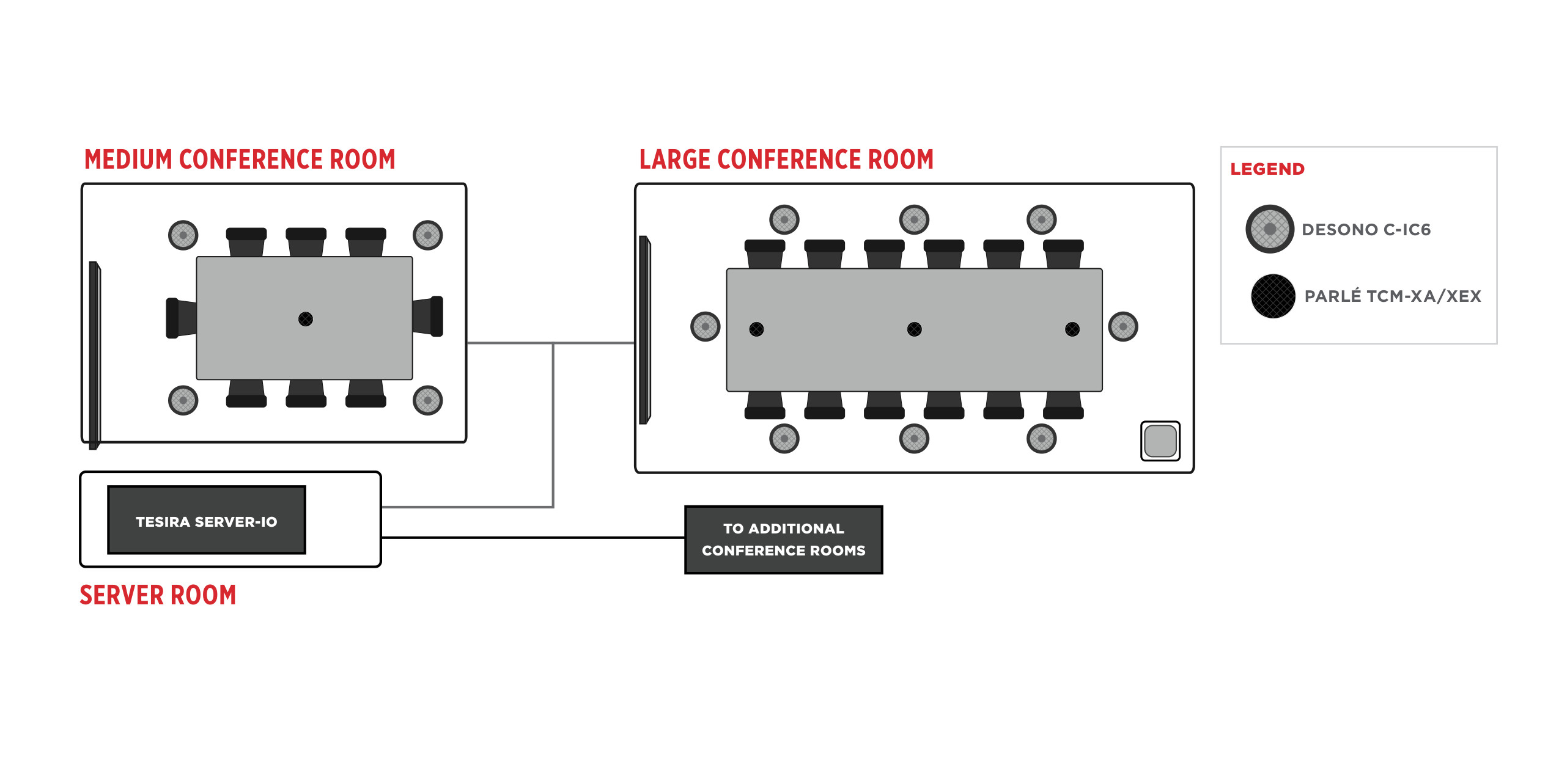

FLOOR PLAN
KEY FEATURES
- SERVER-IO centralizes all audio processing and distribution into one device
- Impera Tango enables Microsoft Teams and Zoom rooms user-designed control page, allowing control room from one touch panel
- TCM-XA allows one CAT connection for power and data transfer to ceiling mounted devices (mics, amps, and speakers)
FLOOR PLAN
| PRODUCT | DESCRIPTION | |||
|---|---|---|---|---|
| SERVER ROOM | ||||
| Tesira SERVER-IO (1 AVB-1 card, 7 SEC-4 cards, 2 DSP-2 cards) | Configurable I/O DSP providing VoIP capabilities to all conference rooms. Fewer rooms would require fewer SVC-2 cards. | |||
| NMS-NG26GPX-AVB | Provides IEEE standard audio networking to each room with low latency and guaranteed QoS. | |||
| MEDIUM CONFERENCE ROOM (6 ROOMS) | ||||
| TCM-XA Microphone | Actively tracks and intelligently mixes conversations from around the table. Each plenum box includes a 2-channel PoE+ amplifier. | |||
| TCM-XEX | Expansion beamtracking microphone that must be used with a Tesira TCM-XA or TCM-X microphone. | |||
| Desono C-IC6 | Provides sound reinforcement for distance conferencing and/or videoconferencing. | |||
| Biamp UCC Lenovo TCP2-IP | Provides UC compute for Microsoft Teams or Zoom Rooms. | |||
| Impera Tango | Provides room control. | |||
| LARGE CONFERENCE ROOM (4 ROOMS) | ||||
| TCM-XA Microphone | Actively tracks and intelligently mixes conversations from around the table. | |||
| TCM-XEX Microphone | Expansion beamtracking microphone that must be used with a Tesira microphone. | |||
| Desono C-IC6 | Provides sound reinforcement for distance conferencing and/or videoconferencing. | |||
| Biamp UCC Lenovo TCP2-IP | Provides UC compute for Microsoft Teams or Zoom Rooms. | |||
| Impera Tango | Provides room control. | |||
| AMP-450BP Amplifier | Provides amplification to ceiling loudspeakers in the room. | |||
