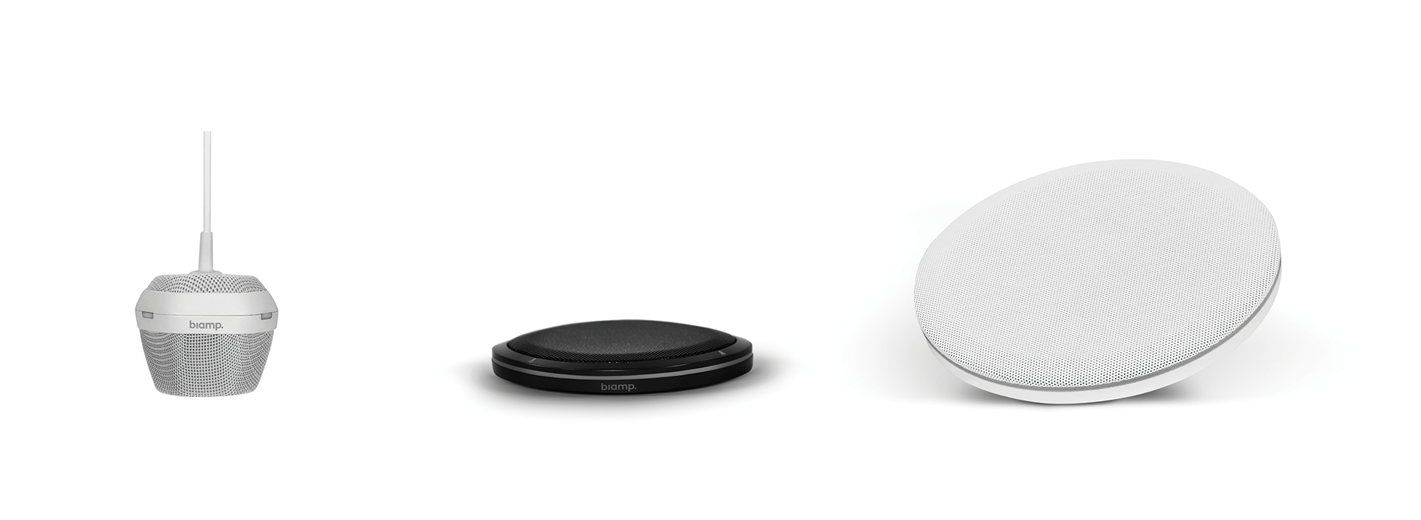

Parlé X-Series Mics Recognized for Outstanding Design
Parlé TCM-X Ceiling
Parlé TCM-X Ceiling
The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The TCM-X is well suited for a variety of room types and sizes with 10’ ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.
- Measures 5.90 inches (150 mm) in diameter
- Mounts directly to the ceiling to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Network box includes DSP for Beamtracking
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The TCM-X is well suited for a variety of room types and sizes with 10’ ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.
- Measures 5.90 inches (150 mm) in diameter
- Mounts directly to the ceiling to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Network box includes DSP for Beamtracking
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Additional Information
Parlé TCM-XA Ceiling
Parlé TCM-XA Ceiling
The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
- Measures 5.90 inches (150mm) in diameter
- Uses only one channel of AEC per mic
- Network box includes DSP for Beamtracking and a PoE+ amplifier:
- Two channels
- Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
- Software-selectable power vs. channel count
- Includes internal limiter function
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- Single cable connection via CAT cable
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
- Measures 5.90 inches (150mm) in diameter
- Uses only one channel of AEC per mic
- Network box includes DSP for Beamtracking and a PoE+ amplifier:
- Two channels
- Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
- Software-selectable power vs. channel count
- Includes internal limiter function
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- Single cable connection via CAT cable
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Additional Information
Parlé TCM-XEX Ceiling
Parlé TCM-XEX Ceiling
The Parlé TCM-XEX is an expansion AVB low-profile ceiling microphone for use in Tesira systems. Each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.
The Tesira TCM-XEX is intended to be used as a second microphone in conjunction with the TCM-X or TCM-XA; it cannot operate as a standalone device.
- Must be used with a Parlé TCM-X or TCM-XA microphone
- Measures 5.90 inches (150 mm) in diameter
- Mounts directly to the ceiling to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
The Parlé TCM-XEX is an expansion AVB low-profile ceiling microphone for use in Tesira systems. Each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.
The Tesira TCM-XEX is intended to be used as a second microphone in conjunction with the TCM-X or TCM-XA; it cannot operate as a standalone device.
- Must be used with a Parlé TCM-X or TCM-XA microphone
- Measures 5.90 inches (150 mm) in diameter
- Mounts directly to the ceiling to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Additional Information
Parlé TTM-X Tabletop
Parlé TTM-X Tabletop
The Parlé TTM-X is an AVB low profile tabletop microphone for use in Tesira systems. Comprising a network box and a tabletop microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TTM-XEX. A maximum of two microphones are permitted (one TTM-X with TTM-XEX).
- Measures 4.7 inches (110 mm) in diameter
- Sits directly on a table top to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Network box which includes DSP for Beamtracking
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Additional RJ-45 connection for TTM-XEX
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
The Parlé TTM-X is an AVB low profile tabletop microphone for use in Tesira systems. Comprising a network box and a tabletop microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TTM-XEX. A maximum of two microphones are permitted (one TTM-X with TTM-XEX).
- Measures 4.7 inches (110 mm) in diameter
- Sits directly on a table top to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Network box which includes DSP for Beamtracking
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Additional RJ-45 connection for TTM-XEX
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Additional Information
Parlé TTM-XEX Tabletop
Parlé TTM-XEX Tabletop
The Parlé TTM-XEX is an expansion AVB microphone for use in Tesira systems. Each low-profile tabletop microphone includes Beamtracking technology with four 90-degree zones, providing full coverage of the meeting space. The TTM-XEX microphone delivers Beamtracking performance in a sleek, unobtrusive design that can be either mounted or placed on a tabletop. The TTM-XEX actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting.
The Parlé TTM-XEX is intended to be used as a second microphone in conjunction with the TTM-X; it cannot operate as a standalone device.
- Must be used with a Parlé TTM-X microphone
- Measures 4.7 inches (110 mm) in diameter
- Sits directly on a table top to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
The Parlé TTM-XEX is an expansion AVB microphone for use in Tesira systems. Each low-profile tabletop microphone includes Beamtracking technology with four 90-degree zones, providing full coverage of the meeting space. The TTM-XEX microphone delivers Beamtracking performance in a sleek, unobtrusive design that can be either mounted or placed on a tabletop. The TTM-XEX actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting.
The Parlé TTM-XEX is intended to be used as a second microphone in conjunction with the TTM-X; it cannot operate as a standalone device.
- Must be used with a Parlé TTM-X microphone
- Measures 4.7 inches (110 mm) in diameter
- Sits directly on a table top to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Additional Information
Parlé TCM-1 Pendant
Parlé TCM-1 Pendant
The Parlé TCM-1 is an AVB ceiling microphone comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
TCM Coverage Calculator
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120° zones for 360° coverage
- Plenum box includes DSP for Beamtracking
- LED mute status indicator
- User-adjustable mic height
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
The Parlé TCM-1 is an AVB ceiling microphone comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
TCM Coverage Calculator
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120° zones for 360° coverage
- Plenum box includes DSP for Beamtracking
- LED mute status indicator
- User-adjustable mic height
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Additional Information
Parlé TCM-1A Pendant
Parlé TCM-1A Pendant
The Parlé TCM-1A is an AVB ceiling microphone and PoE+ amplifier comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
TCM Coverage Calculator
Amplifier Power Calculator
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120° zones for 360° coverage
- Pendant microphone available in either white or black
- Plenum box includes a PoE+ amplifier:
- Two channels; 4W continuous per channel
- Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
- Software-selectable power vs. channel count
- Includes internal limiter function
- Optional tile bridge mounting accessory available
- LED mute status indicator
- User-adjustable mic height
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
The Parlé TCM-1A is an AVB ceiling microphone and PoE+ amplifier comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
TCM Coverage Calculator
Amplifier Power Calculator
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120° zones for 360° coverage
- Pendant microphone available in either white or black
- Plenum box includes a PoE+ amplifier:
- Two channels; 4W continuous per channel
- Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
- Software-selectable power vs. channel count
- Includes internal limiter function
- Optional tile bridge mounting accessory available
- LED mute status indicator
- User-adjustable mic height
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Additional Information
Parlé TCM-1EX Pendant
Parlé TCM-1EX Pendant
The Parlé TCM-1EX is an expansion AVB ceiling microphone intended to be used as a second and third microphone in conjunction with a TCM-1 or TCM-1A; it cannot operate as a standalone device. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
TCM Coverage Calculator
- Must be used with a Parlé TCM-1 or TCM-1A microphone
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120° zones for 360° coverage
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
The Parlé TCM-1EX is an expansion AVB ceiling microphone intended to be used as a second and third microphone in conjunction with a TCM-1 or TCM-1A; it cannot operate as a standalone device. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
TCM Coverage Calculator
- Must be used with a Parlé TCM-1 or TCM-1A microphone
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120° zones for 360° coverage
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
