Modular, Adaptive and Scalable
- I SERIES Modular Vertical Array 600
- 5° and 15° two-way elements and 18” subwoofer
- Elements (5° or 15°) can be used in simple arrays, or combined in complex arrays
- Modular design allows configuration flexibility: constant curve to straight arrays
- Three splay plates provide smooth transition: 0° to 15° (in 2.5° increments)
- Multiple indoor rigging options
- Build arrays of 2-16 elements for short to long-throw applications
Array Elements
12-Inch 2-Way 5° and 15° Array Elements
- LF: 1 x 12" (305mm); HF: 2 x 1" (25mm) exit, 1.7" (43mm) voice coil
- Operating Range: 40 Hz to 18.5 kHz
- Dispersion: Horizontal 120°; Vertical – array dependent (5° max IV6-1122/05, 15° max IV6-1122/15)
- Continuous Power Handling: 80V, 400W @ 16 Ohms (Nominal)
- Nominal Sensitivity (1W/1m): 102 dB SPL (IV6-1122/05)
- Operating Mode: Passive with integrated Passive Acoustic Optimization filters
18-Inch Subwoofer
- LF: 1 x 18" (457mm)
- Operating Range: 37 Hz to 132 Hz
- Continuous Power Handling: 80V, 800W @ 8 Ohms (Nominal)
- Nominal Sensitivity (1W/1m): 102 dB SPL
- Max Output: 131 dB SPL (137 dB Peak)
- Operating Mode: Passive
Additional support materials here

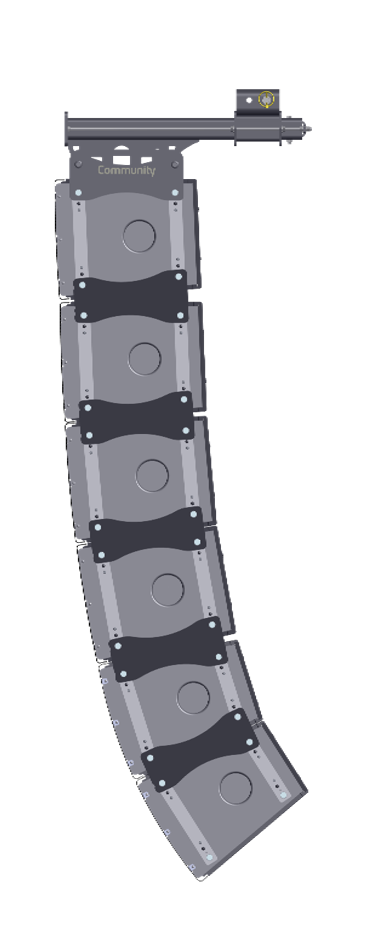

Splay Brackets
- 3 Splay Bracket Angles 0°, 2.5° and 5°
- Designed to Purposely Limit Excess Overlap between Adjacent Cabinets
- Provides Smooth Coverage Transition from 5° to 15° Cabinets
- Powder Coated Aluminum – Use Indoor or Outdoor
- Available in Black or White
- “Notches” Conveniently Identify Plates for System Installers
- Concealed by Cover Panels after Installation
