INDOOR RIGGING OPTIONS
| # | Part Number | Description |
|---|---|---|
| 1 | IV6-ZB-TCK | Z-Beam and Tilt Cable Kit (for use with IV6-LAF-PBB-shown) |
| 2 | IV6-ZB-DHB | Z-Beam "Dead Hang" Bracket (for use with IV6-LAF-PBB) |
| 3 | PY1-ZBH-1550 | Two Point Permanent Install Mount with Center Service Pick Point |
| 4 | PY1-ZBR-1550 | Self-Leveling Dual Hoist Mount |
| 5 | PY1-SLH | Self-Leveling Two Point Bridle Mount (1200lbs. WLL) |
| 6 | PY1-RBC-1-1100 | Level, Steel I-Beam Mount |
| 7 | PY1-BTP1212-1550 | 12" x 12" Box Truss Plate Mount |
| 8 | RLP-X2-1800 | Redundant Load Point |
| 9 | PY0-WMV-2226-250 | Wall Mount (250lbs. WLL) |
| 10 | PY0-STEM | Hidden Two Point Permanent Install Through-Ceiling Mount (300lbs. WLL) |

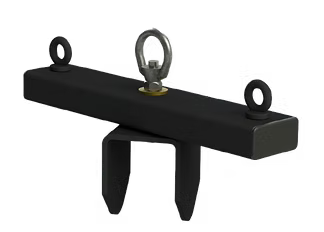

| 11 | PY0-ZBH-300 | Two Point Permanent Install Mount with Center Service Pick Point (300lbs. WLL) |
| # | Part Number | Description |
|---|---|---|
| 12 | PY1-UJEXT-POST | Custom Length Ceiling Extension Post (available from 2ft. to 16ft.) |
| 13 | PY1-CBA-3 | Custom Sized Mount for Level or Sloped Wood-Based Beams (500lbs. WLL) |
| 14 | PY1-CBA-4 | Custom Sized Mount for Rolled Wood-Based Beams (450lbs. WLL) |
All PY0/PY1 brackets shown are infinitely adjustable, and will connect to the carriage hang points on the IV6-GP-AF and IV6-SB-AF.

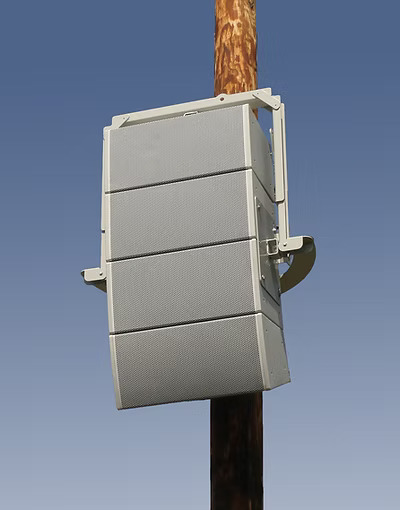

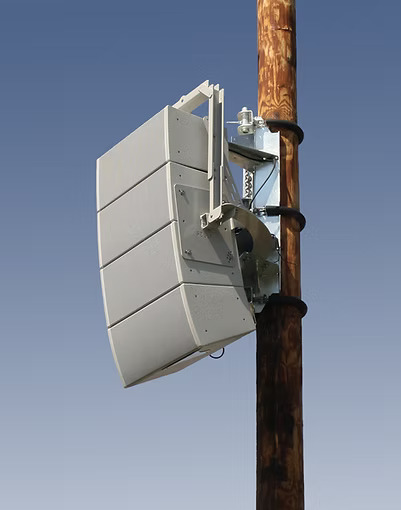

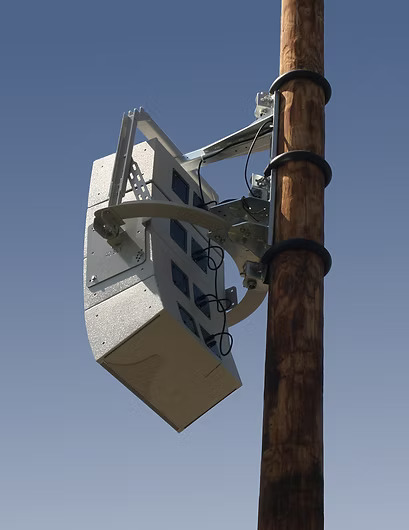

OUTDOOR RIGGING OPTIONS FROM POLAR FOCUS
