Designing with Community IV6 Loudspeakers Gets Even Easier
VenuePolar for IV6 GLL v3.20
With Biamp's newest release of the VenuePolar EASE Focus plugin (included within the IV6 GLL v3.20 file), the system design of the Community IV6 loudspeaker system just got even easier.

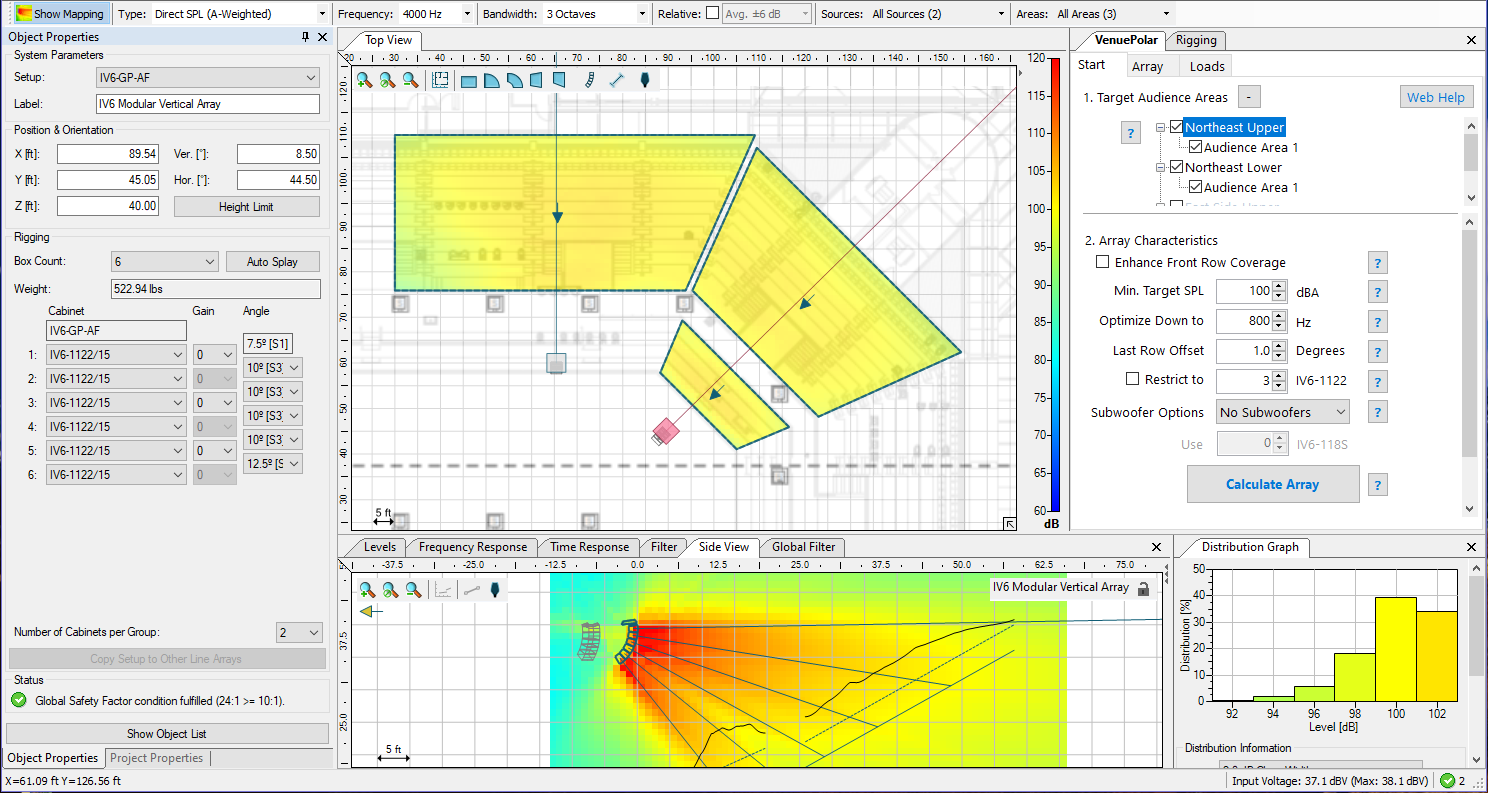

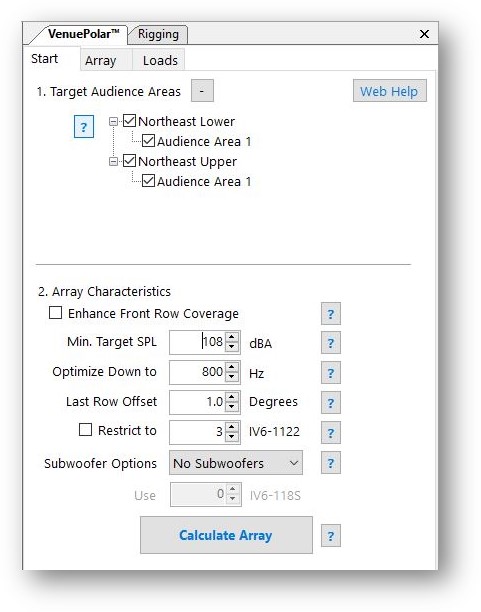

VenuePolar™ is an EASE® Focus plugin that automates the loudspeaker system design for the Community IV6 Modular Vertical Array. This tool quickly calculates the number and type of cabinets, frame angle, splay angle, and how to set the 55 Passive Acoustic Optimization settings on each IV6 cabinet in a venue layout.
.png?sfvrsn=2ab8e72d_1)

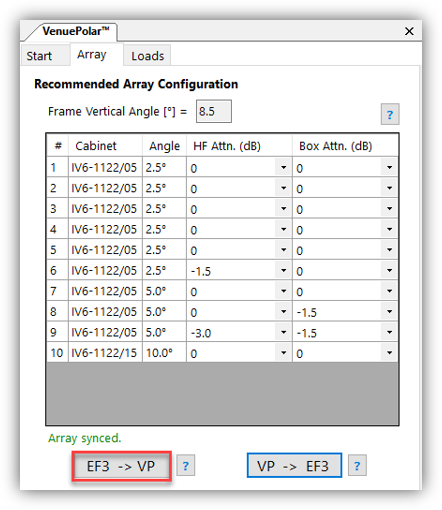

- Automatic array sync of the cabinet models and counts from VenuePolar to the EASE Focus 3 software at the click of a button, VP to EF3.
- Saving the designer time from manually moving the configuration over from the plugin into the software.

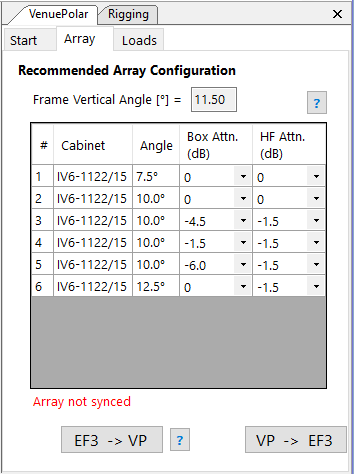

- When advanced users want to manually adjust the mechanical array in EASE Focus 3, there is now a re-optimize filters function within the plugin.
- This new feature returns the best filter settings for the given mechanical array, with any cabinet quantity.

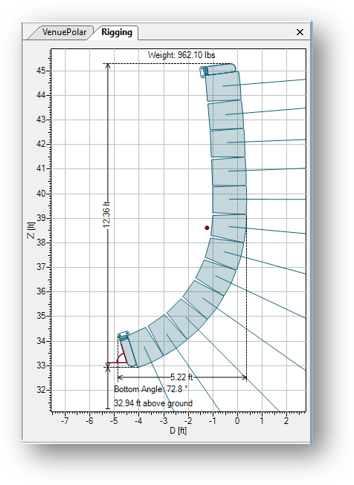

- New capabilities have been added to the Rigging Safety Calculator found under the Loads tab.
- The pull back bar now allows designers to safely build bigger arrays in excess of up to 20 cabinets in virtually any configuration.

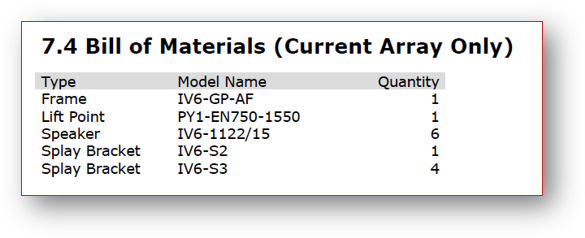

- A new and improved bill of materials in the report section provides a more streamlined summary of the quantities and types of loudspeakers, splay brackets, and other accessories required in each array to simplify the ordering process.

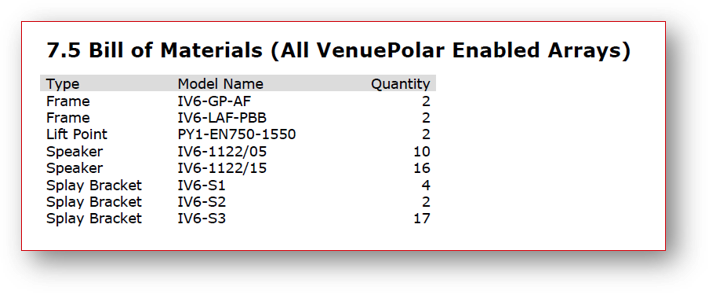

- The report also includes a total bill of materials for the project that can be found at the last sound source.
