The IV6 Modular Vertical Array with Passive Acoustic Optimization (PAO) and EASE Focus 3 delivers clear, consistent sound throughout any venue. VenuePolar™ and other design tools simplify setup while reducing system costs—often using just one amp and DSP channel for multiple cabinets. Built for permanent installs, IV6 offers sleek aesthetics, durable outdoor-ready construction, and intelligent software support for fast, efficient, high-performance system design.
Designed for Installation
V6 is designed for permanent installation with tight internal rigging tolerances and cover panels for aesthetically seamless appearance. Intelligent software assistance makes designing systems fast and easy.

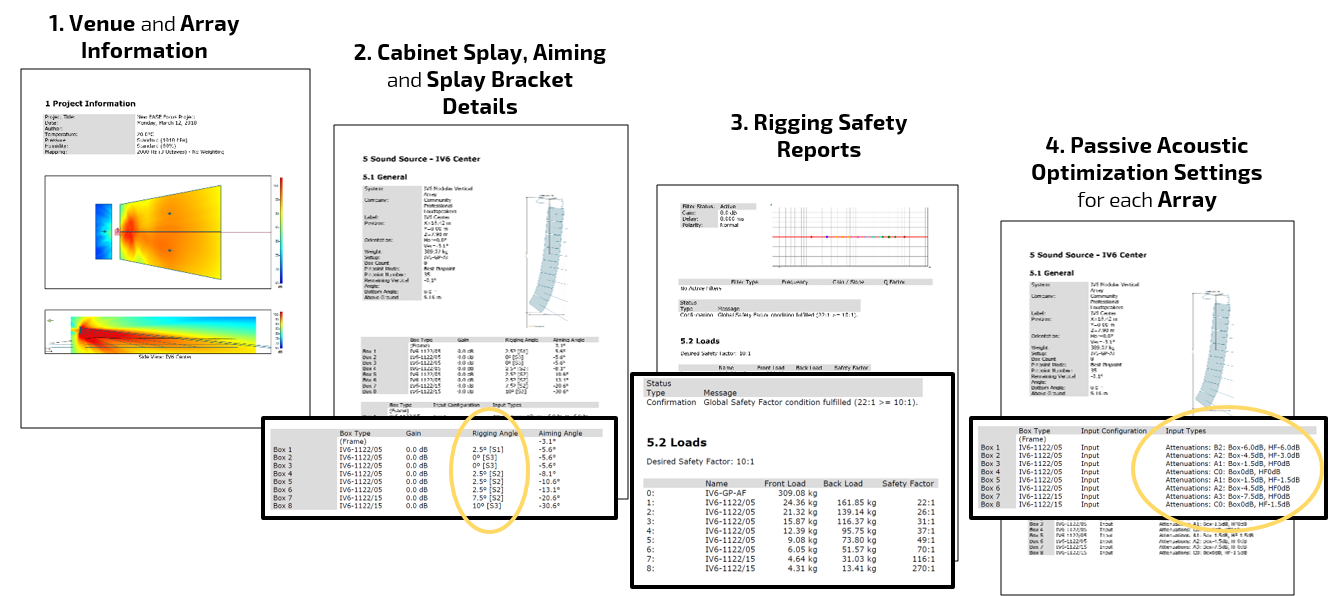

EASE Focus 3 Project Report
- Lists elements/splay plates for your project
- Identifies splay plates
- Lists cabinet and HF attenuation settings
Impedance Calculator
Determines the maximum number of IV6-1122 array elements that can operate within the minimum impedance requirements of any given amplifier channel.
Sub Behind Hang Point Calculator
Calculates where the carriage should be positioned on the IV6-SB-AF when connected to the IV6-GP-AF.
Passive Acoustic Optimization

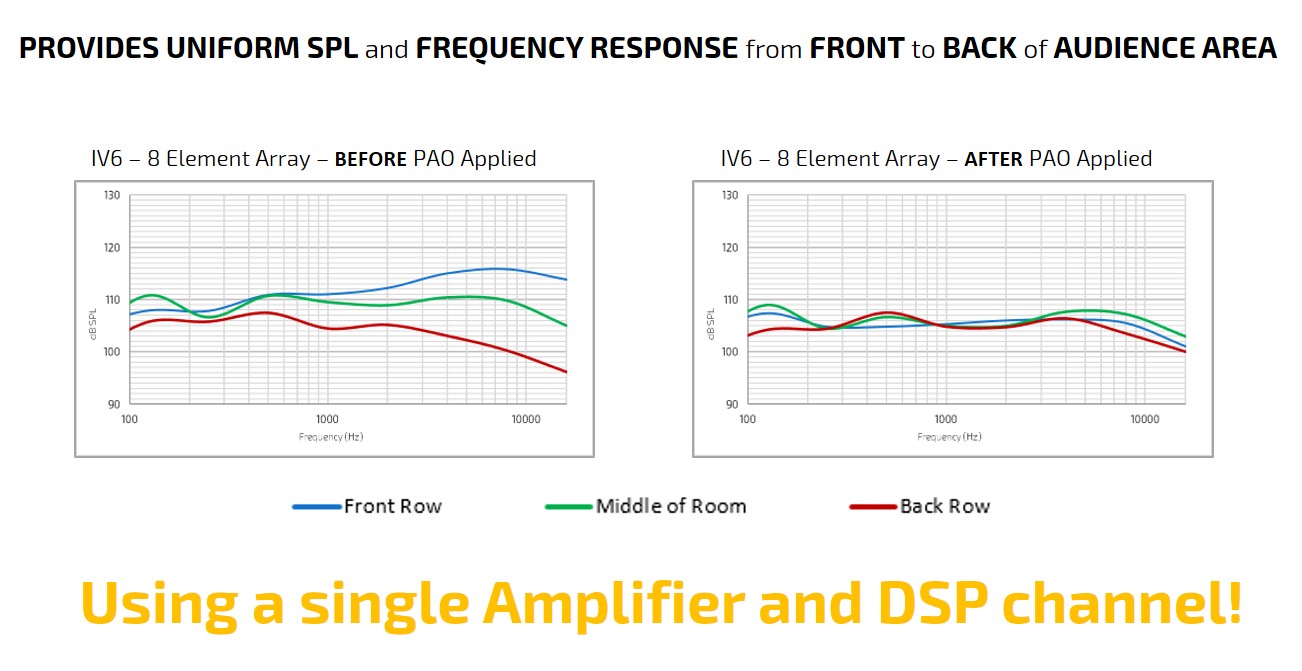

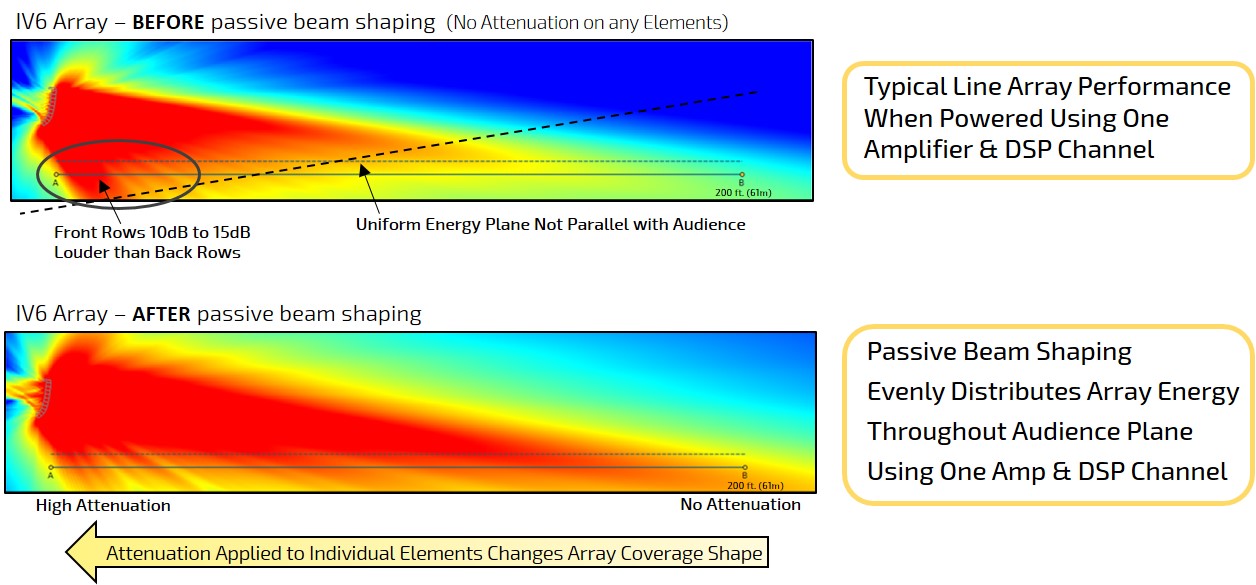

Passive Acoustic Optimization, or PAO, is the vehicle to achieving passive beamshaping with IV6. PAO utilizes the power of EASE Focus 3 software to help designers achieve very even coverage in a venue from the first listener to the last.

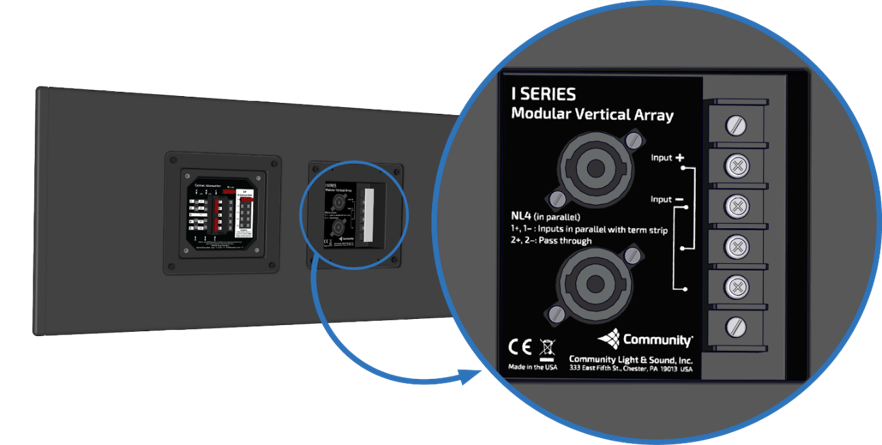

Fewer Electronics
One DSP and amplifier channel per array reduces total system costs. In many cases, a single amp and DSP channel can run 5 to 6 IV6 full-range cabinets in parallel.
VenuePolar

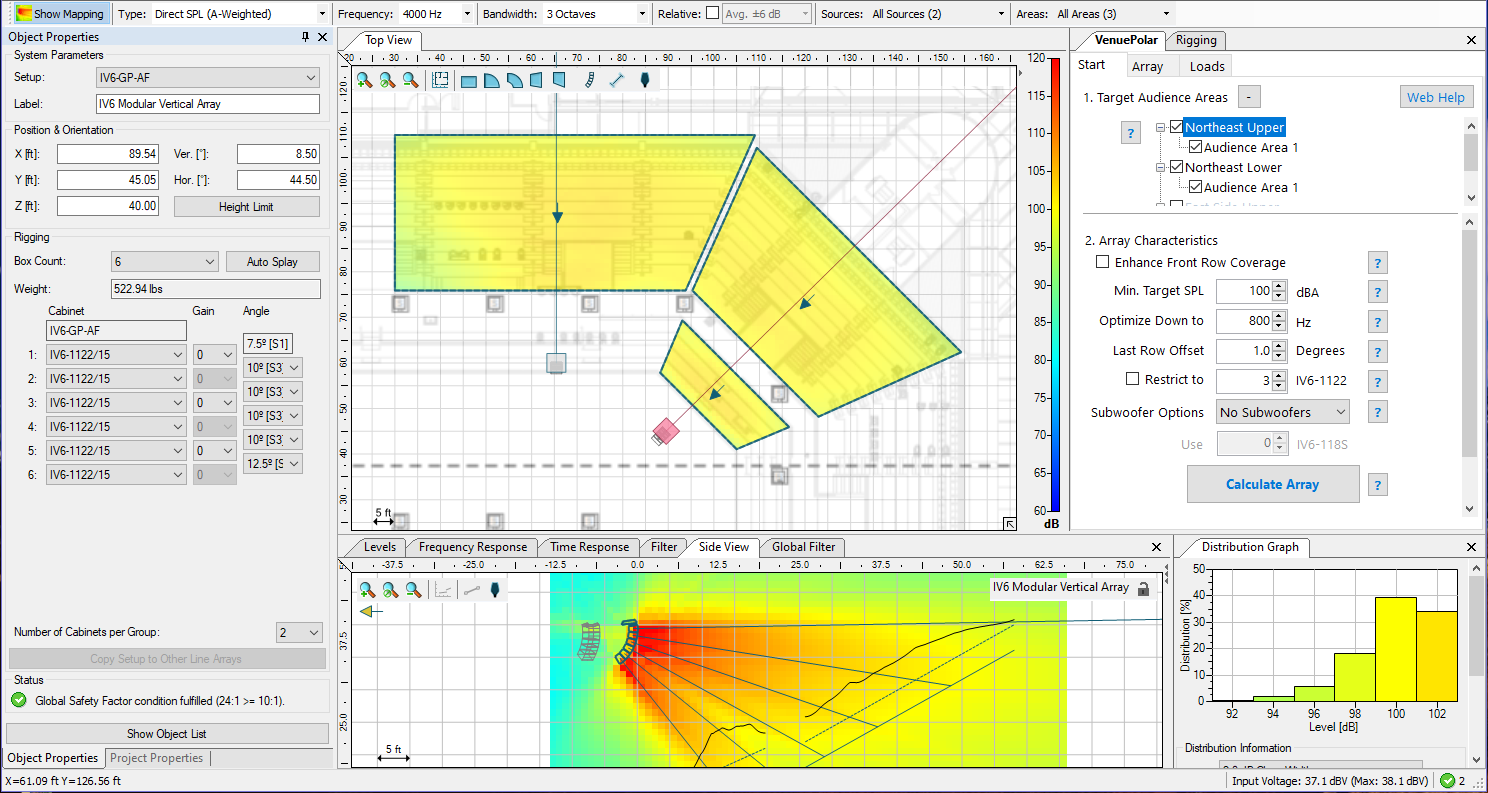

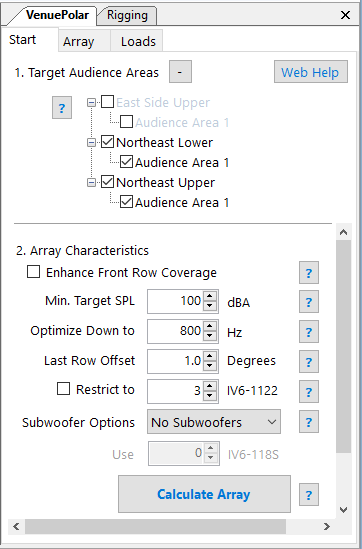

VenuePolar™ is an EASE® Focus plugin that automates the loudspeaker system design for the Community IV6 Modular Vertical Array. This tool quickly calculates the number and type of cabinets, frame angle, splay angle, and how to set the 55 Passive Acoustic Optimization settings on each IV6 cabinet in a venue layout.
-(1).png?sfvrsn=bd4de64_1)

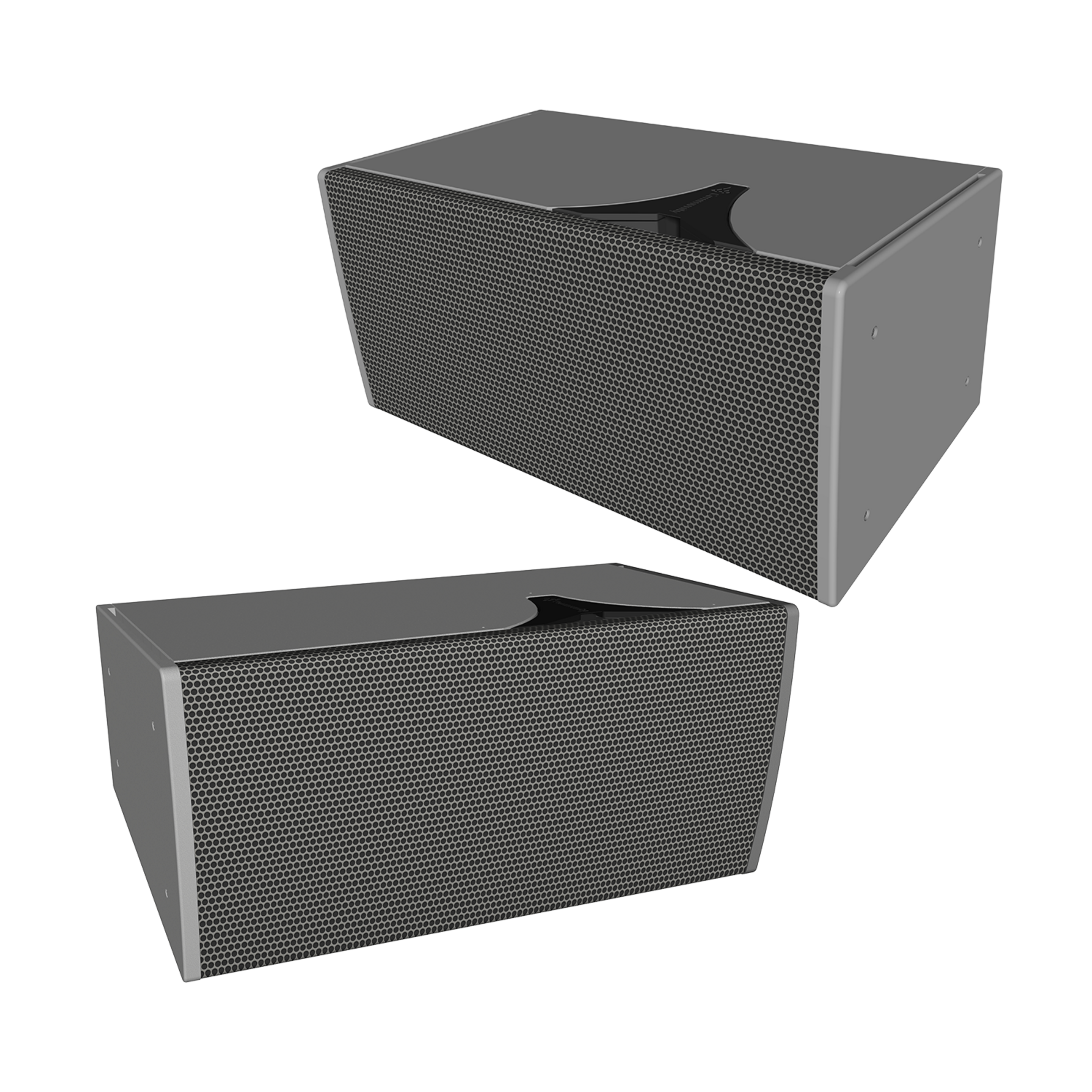

Outdoor IV6 models feature Community's exclusive PolyGlas™ construction, with stainless steel hardware and marine-grade aluminum internal rigging.
Indoor Models
- Available in Black or White
- PolyGlas™ Enclosure
- IV6-1122/05: 120° x 5°
- IV6-1122/15: 120° x 15°
- IV6-118S: 1 x 18" High Power Sub
Outdoor Models
- Available in Black, White or Grey
- PolyGlas™ Enclosure

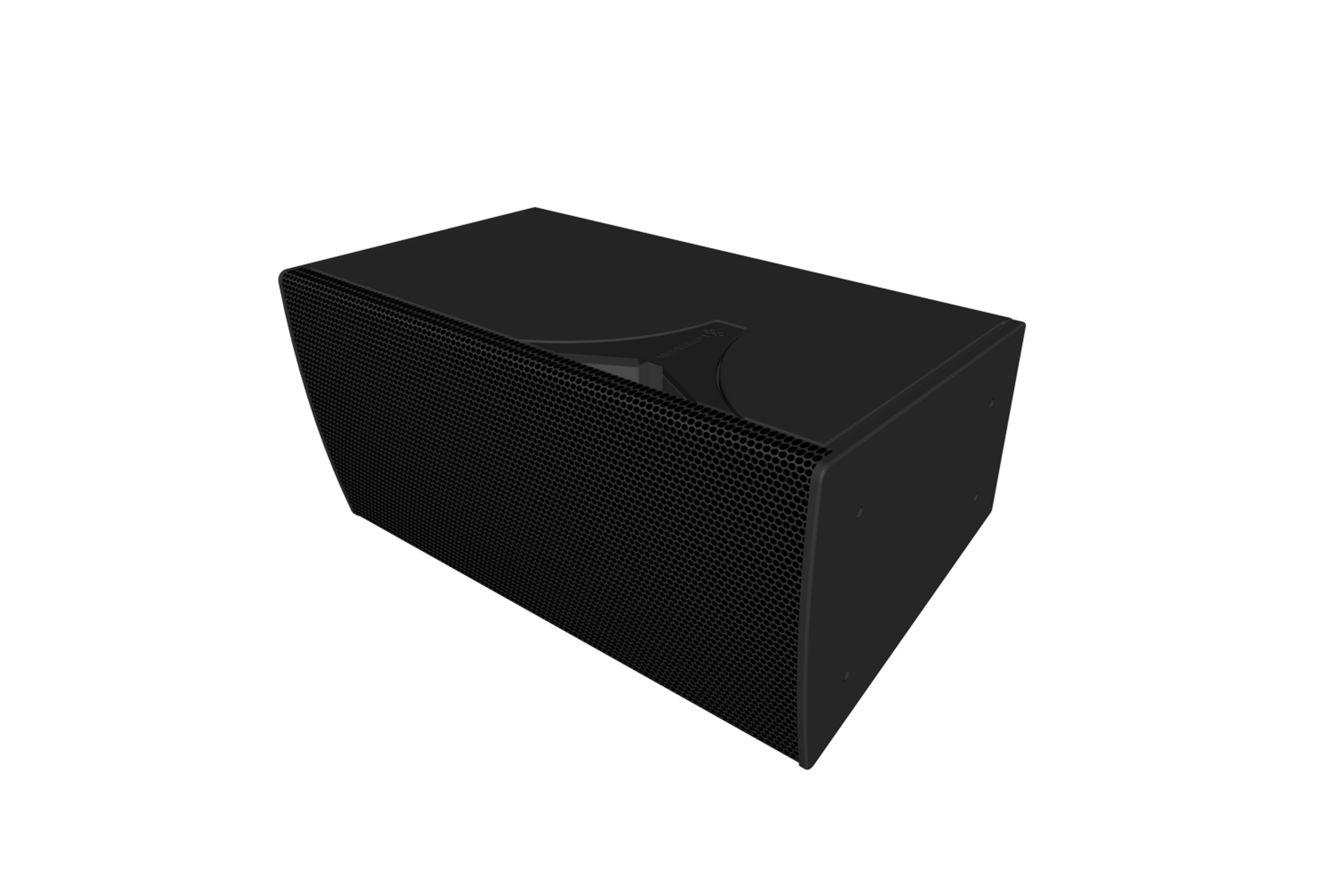

- IV6-1122WR05: 120° x 5°
- IV6-1122WR15: 120° x 15°
- IV6-118SWR: 1 x 18" High Power Sub
